Starpack Corrugated Box Printing Machine Fully Automatic 180 Sheet/min

  • Starpack Corrugated Box Printing Machine Fully Automatic 180 Sheet/min
  • Starpack Corrugated Box Printing Machine Fully Automatic 180 Sheet/min
Place of Origin Foshan,CN
Brand Name Starpack
Certification Patent Certificate, CE Certificate
Model Number SP-Q3
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Steel Base with Carton & Bopp Film Wrapping
Delivery Time 60-90 days
Payment Terms L/C, T/T
Supply Ability 3 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Corrugated Carton Box Flexo Printing Slotting Die Cutting Machine Automatic Type Fully Automatic Type
Voltage 220/380V Or Custom Warranty 1 Years Warranty
Service Video Technical Support, Online Support, All Necessary Documents, Quickly Wear-out Parts Supply And Etc.. Application For All Kind Of Carton Boxes Making
Gear Cover Steeless Steel Speed Up To 300sheets/min
High Light

180Sheet/min Corrugated Box Printing Machine

,

Starpack Corrugated Box Printing Machine

,

180Sheet/min Corrugated Flexo Printing Machine
Leave a Message
Product Description





Flexo Printer Slotter Machine 1200x2400mm Hot sale Corrugated Carton Box Flexo Printing Slotting Die Cutting Machine for Carton Box Making Packag Machine from China





BRIEF INTRUCTION

  1. Flexo Printer Slotter Machine, also named as corrugated carton box making machine, it is the major step to make varies of carton boxes from cardboard, and this machine can finished feeding, printing, slotting, die-cutting, scraps removing, stacking, and can match with a automatic folder gluer for saving labor cost and increase the production capacity.
  2. This machine can easy match with Automatic or Semi-auto Pre-feeder, FFG's, Automatic Vibrator and Counter Stacker, or Automatic PP/PE Strapping Machine according to your needs.
  3. All the gaps of this machine is quickly manual adjusted with self locking handle, and cardboard transfer by vacuum device, it's up and down by motorized control.



The Q3 featured with the functions as below marked by “√”.



1st Process 2nd Process 3rd Process 4th Process 5th Process
Order setting Feeding 1-6 color Printing Slotting or Die cutting Vibrator Cleaning
√ √ √ √ ×



6th Process 7th Process 8th Process 9th Process 10th Process
Vanishing IR drying Gluing Stitching Stacking
× × × × √

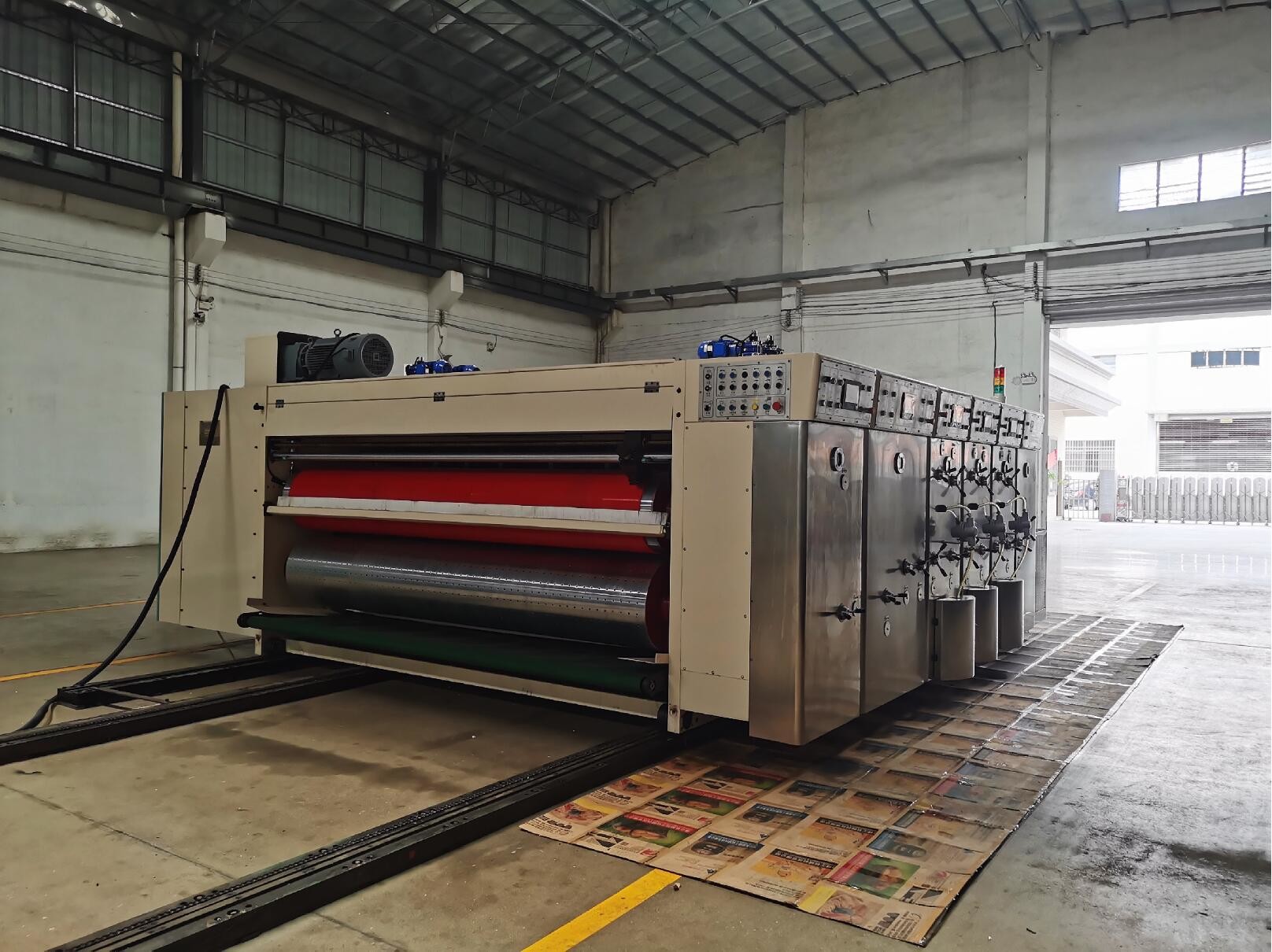

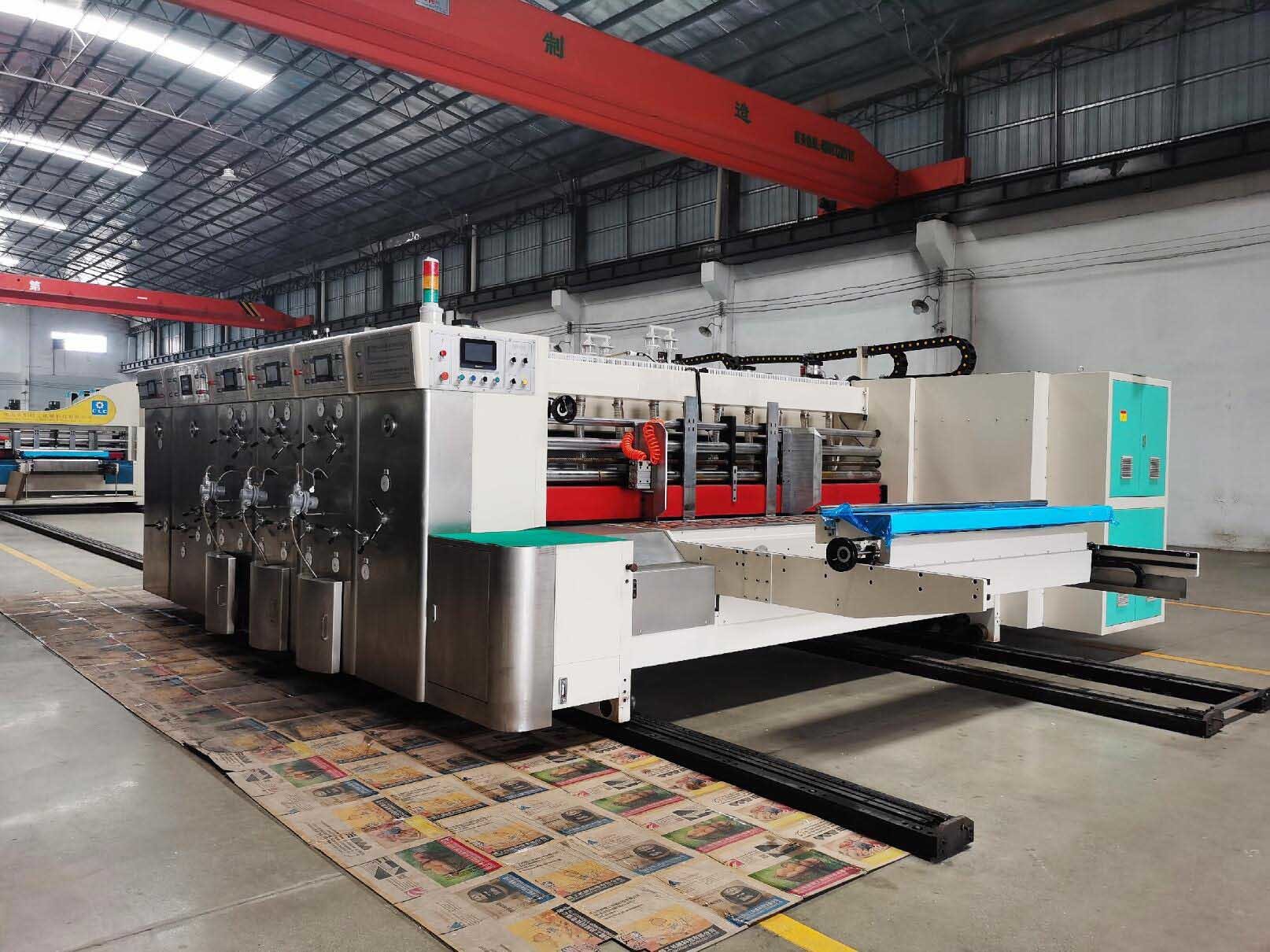

The Photo of Machine

Starpack Corrugated Box Printing Machine Fully Automatic 180 Sheet/min 0

Starpack Corrugated Box Printing Machine Fully Automatic 180 Sheet/min 1





SPECIFICATION

Starpack Corrugated Box Printing Machine Fully Automatic 180 Sheet/min 2

Model SP-Q3 SP-Q3 SP-Q3
Size 0920 1224 1628
Max.Sheet Size (FxA) 890x2000 1190x2400 1600x2800
Skip Feed Size (FxA) 1200x2000 1400x2400 1800x2800
Min.Sheet Size (FxA) 280x700 350x720 450x850
Max.Printing Area (FxA) 890x1960 1190x2360 1600x2760
Top Speed(Sheet/min) 300 250 180
Economic Speed (sheet/min) 150-250 120-220 100-160
Min. Slotting Space-Reverse Knife (BxCxBxC) 270x100x270x100 270x100x270x100 320x120x320x120
Min. Slotting Space-Normal Knife (BxCxBxC) 160x160x160x160 160x160x160x160 160x160x160x160
Max. Slot Depth Size 250 320 450
Min. Box Height Size 110 110 160
Max. Die-Cutting Area 850x1950 1150x2350 1530x2750
Sheet Thickness 1.5-11 1.5-11 1.5-11
Thickness of Printing Plate 7.2 7.2 7.2
Main Working Power(KW) 4 Colors Slotter Die-cutter 69 76 95.5
Stacker + Vibrator 3+10 3+10 3+10
Total Power(KW) 4 Colors Slotter Die-cutter 181.5 88.5 108
Stacker + Vibrator 3+10 3+10 3+10
Dimension (mm) 4 Colors Slotter Die-cutter 6600x4950x2550 9900x5350x2650 9900x5750x2750
Stacker 6500x3500x3000 6500x3970x3000 6500x4440x3000
Vibrator 3200x3300x1100 3200x3700x1100 3200x4150x1100





Starpack Corrugated Box Printing Machine Fully Automatic 180 Sheet/min 3





FEATURES



Feeding Unit

  1. Lead edge feeding system with vacuum device, easy for cardboard feeding.
  2. Upper Dust remover with brushers and single dust blower.
  3. Sheet transfer with two groups of rubber pull rolls.
  4. Gap of feeding rollers are manual with self-locking, Side baffles are motorized adjustment or by order management system.



Printing Unit

  1. Vacuum transfer for cardboard sending, manually adjust of volume.
  2. Anilox roller with rubber roller inking or Anilox roller with Chambered doctor blade system for choosing.
  3. Rubber roller and anilox roller quickly change system for future maintain.
  4. Gap of anilox roller and printing drum are manual with self-locking. And Vacuum Box, horizontal and vertical movement are motorized.



Slotting Unit

  1. Sheet transfer with rollers.
  2. 6-shafts rotation: Pre-creasing, Creasing, Single shaft slotting.
  3. All slotting knife holders connect with creasing rings and slotting knifes, synchronously moving in horizontal position.
  4. Gaps of creasers and slotting knifes are manual with self-locking. And box height, registering and vertical moving are computerized with order managing.



Die cutting Unit

  1. Sheet transfer with rollers.
  2. Upper die cutting rubber roller is driven by mechanical line speed compensation.
  3. Shaft-head treated with lock, not welding, given strong capacity of bearing pressure.
  4. Gaps of feeding is manual with self-locking, and registering and vertical moving are motorized.
  5. Auto Stacker
  6. Stacking height 1800mm.
  7. By hydraulic control lifting.





ADVANTAGES

  1. High capability: Maximum output up to 15000 per hours
  2. Labor saving: 3-4 workers for whole processes
  3. Easy Job: Order saving and quick changing by 5-10 min.
  4. Wide range application: Be used to agriculture, food, logistics and industrial packaging.
  5. Acceptability in Precision: Pass rate is more than 99%



ACCURACY

Feeding ≤ ±1.5 mm
Printing(4 colors) ≤ ± 0.5 mm
Slotting ≤ ± 1.5 mm
Die-cutting ≤ ± 1.5 mm





Following items can be featured as per actual needs.

Ceramic anilox roller

Chambered doctor blade system

IR dryer

Coated varnishing

Dual-shaft Slotting structure

Pre-feeder

Inline Folder Gluer

Non-crush wheel feeder with servo control.
