Flexo Corrugated Box Printing Machine Multi Color 300 Sheets/Min

Place of Origin Foshan,CN
Certification Patent Certificate, CE Certificate
Model Number SP-Q2
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Steel Base with Carton & Bopp Film Wrapping
Delivery Time 60-90 days
Payment Terms L/C, T/T
Supply Ability 3 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Automatic Carton Box Flexo Multi Color Printing Slotting Machine Service Video Technical Support, Online Support, All Necessary Documents, Quickly Wear-out Parts Supply And Etc..
Automatic Type Fully Automatic Type Voltage 220/380V Or Custom
Warranty 1 Years Warranty Application Flexo Multi Color Carton Box
Usage For All Kind Of Carton Box Making Speed Automatic High Speed Up To 300sheets/min
High Light

Flexo Corrugated Box Printing Machine


300sheets/min Corrugated Box Printing Machine


300sheets/min Corrugated Box Making Equipment

Leave a Message
Product Description



Automatic Carton Box Flexo Multi Color Printing Slotting Machine Corrugated Carton Box Making Machine Export to Russia, Thailand, Malaysia, Middle East

  1. Corrugated Box Packaging Machine consists of Feeding Unit, Printing Unit, Slotting Unit & Die-cutting Unit, is also named as Flexo Printer Slotter Die-cutter, this is one of the machine that used for making Corrugated Boxes, such as Cartons, Boxes, Trays, Displays and etc… and it can finish multi-processes, like Feeding, Printing, Slotting, Die-cutting, (Vibrating), Stacking or (Counting Stacking).
  2. SP-Q2 Series Printer Slotter Machine is an Automatic High Speed Computerized & Motorized with Manual Control Machine (Only Gap Manual), same like SP-Q3 model, it also with a computer on Slotting Unit, which can use for Storage Orders, the only Difference between Q3 and Q2 is Q3 model with Vacuum Transfer on Printing Unit, while Q2 is Roller Guiding Transfer. the features of this machine are High Speed, Lower Investment, Easy to Operate and Maintain. And this machine consists a Lead Edge Feeder, Roll to Roll Transfer Printer, Slotter, Die-cutter, (Vibrater) and Stacker or (Counter Stacker).


This machine can use to finish following process and products.
Flexo Corrugated Box Printing Machine Multi Color 300 Sheets/Min 0

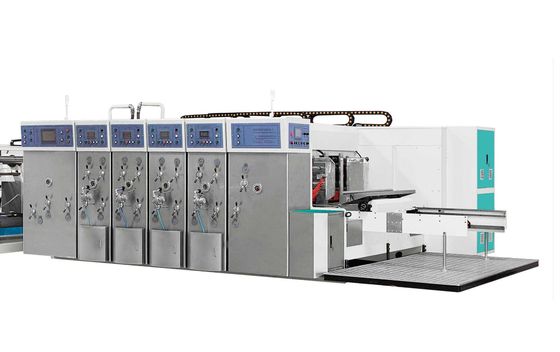

The Photo of Machine
Flexo Corrugated Box Printing Machine Multi Color 300 Sheets/Min 1

Flexo Corrugated Box Printing Machine Multi Color 300 Sheets/Min 2



  1. Each unit adopts PLC to control separately, and carries on the communication interconnection, the color touch screen; Various control functions, parameter setting numerical display, simple, easy to control.
  2. The whole machine is driven uniformly, each section gear is connected with synchronous transmission, pneumatic interlocking, motorized Unit open and close, and combined with safety protection device.
  3. All main TRANSMISSION GEARS are made of imported alloy, carburized and quenched, precision grinding, and durable.
  4. Printing Unit adopts Vacuum Transfer for Cardboard transmit, to make sure the bend/wrap cardboard can be transmitted smoothly.
  5. The designing speed of the machine is 250SHEETS/MIN, and the running speed will be 120-220SHEETS/MIN (according to the Size, Quality of Cardboard, and Order Sophisticated and Weather Conditions and etc…).
  6. All the core components are using of global well-known brands, stable and durable
  7. All the ELECTRIC COMPONENTS are adopt the international first-class brand, stable and durable, the main control electric box is equipped with INDUSTRIAL CONSTANT-TEMPERATURE AIR-CONDITIONER, each unit electric box equipped with a dust-proof and heat-dissipating device, to ensure the operation performance is stable and reliable.
  8. Oil pump spray system and oil balance system are used for gear lubrication.
  9. Can match with PRE-FEEDER and INLINE FOLDER GLUER, which can improve automation and save labor and labor intensity.


Flexo Corrugated Box Printing Machine Multi Color 300 Sheets/Min 3

Model SP-Q2 SP-Q2 SP-Q2
Size 0920 1224 1628
Max. Sheet Size (FxA) 890x2000 1190x2400 1600x2800
Skip Feed Size (FxA) 1200x2000 1400x2400 1800x2800
Min. Sheet Size (FxA) 280x700 350x720 450x850
Max. Printing Area (FxA) 890x1960 1190x2360 1600x2760
Top Speed (Sheet/min) 300 250 180
Economic Speed (sheet/min) 150-250 120-220 100-160
Min. Slotting Space-Reverse Knife (BxCxBxC) 270x100x270x100 270x100x270x100 320x120x320x120
Min. Slotting Space-Normal Knife (BxCxBxC) 160x160x160x160 160x160x160x160 160x160x160x160
Max. Slot Depth Size 250 320 450
Min. Box Height Size 110 110 160
Max. Die-Cutting Area 850x1950 1150x2350 1530x2750
Sheet Thickness 1.5-11 1.5-11 1.5-11
Thickness of Printing Plate 7.2 7.2 7.2
Main Working Power(KW) 4 Colors Slotter Die-cutter 90/69/47 105/76/54 126.5/95.5/65.5
Stacker + Vibrator 3+10 3+10 3+10
Total Power(KW) 4 Colors Slotter Die-cutter 105/81.5/59.5 120/88.5/66.5 141/108/78
Stacker + Vibrator 3+10 3+10 3+10
Dimension (mm) 4 Colors Slotter Die-cutter 6600x4950x2550 9900x5350x2650 9900x5750x2750
Stacker 6500x3500x3000 6500x3970x3000 6500x4440x3000
Vibrator 3200x3300x1100 3200x3700x1100 3200x4150x1100
Mark: 0820 0924 1220 1226 1228 1424 1426 1630 1632 2036 can be customized.

Ceramic Rollers
Chambered Doctor Blade
Dual-shaft Slotting Unit
Counter Stacker
Inline Folder Gluer
