Carton Box Flexo Printing Slotting Die Cutting Machine 180 Sheet/min For Pizza Box Making

  • Carton Box Flexo Printing Slotting Die Cutting Machine 180 Sheet/min For Pizza Box Making
  • Carton Box Flexo Printing Slotting Die Cutting Machine 180 Sheet/min For Pizza Box Making
Place of Origin Foshan,CN
Brand Name Starpack
Certification Patent Certificate, CE Certificate
Model Number SP-Q3
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Steel Base with Carton & Bopp Film Wrapping
Delivery Time 90-100 days
Payment Terms L/C, T/T
Supply Ability Negotiation

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Automatic Carton Box Flexo Printing Slotting Die Cutting Machine Service Video Technical Support, Online Support, All Necessary Documents,Quickly Wear-out Parts Supply And Etc...
Key Selling Point Stable And Durable,Efficiency Application For All Kind Of Carton Boxes Making
Warranty 1 Years Warranty Gear Cover Steeless Steel
Automatic Grade Automatic, Computerized, Semi-Automatic, Semi Type Flexographic Printer, Carton Printer Slotter Die Cutter Machine, Carton Box Printing Machine, Semi Auto Or Full Auto, Packing Machine
High Light

Flexo Printing Slotting Die Cutting Machine

,

Flexo Printer Slotter Die Cutter Machine

,

180Sheet/min Pizza Box Maker Machine
Leave a Message
Product Description





Automatic Carton Box Flexo Printing Slotting Die Cutting Machine Chinese Supply High Speed Flexo Printer Slotter For Pizza Box Making





SUMMARY OF MACHINE

  1. Automatic Carton Making Machine is also named as Carton Box Printing Slotting Machine, this is one of the Main machines that needed for making Corrugated Carton Boxes, Trays, Displays and etc... and it can finish multi-processes, such as Feeding, Printing, Slotting, Die-cutting, (Vibrating), Stacking or (Counting Stacking).
  2. high speed flexo printing slotting machine/corrugated carton box making machine/used corrugated carton flexo printing machine
  3. flexo machine printing machine carton packaging machinery
  4. printer slotting machine
  5. corrugated carton printing machine
  6. corrugated cardboard printing machine
  7. cardboard box printing machine
  8. printing machine
  9. corrugated box printing machine



The Following Process & Jobs can be finished on Printer Slotter.

Carton Box Flexo Printing Slotting Die Cutting Machine 180 Sheet/min For Pizza Box Making 0





THE MAIN FEATURES:

  1. Control system: Siemens PLC, Production order can be saved and recalled to save changing time. Memorize system for easy operation and maintenance.
  2. Double servo feeding system, each row of feeding wheels is driven by independent servo motor, high precision and row noise, non-feeding rollers in feeder to prevent the corrugated wave from damaging.
  3. Printing: Ceramic anilox roll and doctor blade system for high quality printing. automatic ink collecting and automatic washing, inking saving and easy washing.
  4. Slotter: computerized control the box length, width and box height, fast and convenient .
  5. Die cutter: independent engine drive controlled by KEB servo system from Germany to ensure the die cutting accuracy. Surface speed compensation system. Die cylinder shifts when running to prolong the life of rubber anvil.
  6. Gears are made of high-quality chrome steel, heat treated and grinded to ensure the high stability and precision.
  7. Bearings and electrical components are all famous brand in Taiwan and in China.

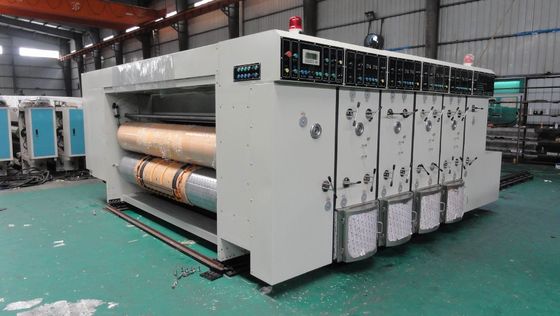

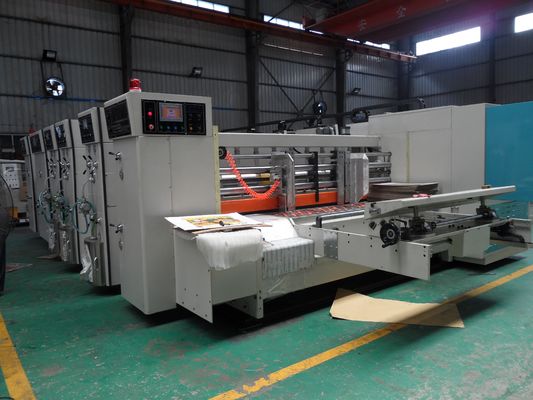

The Photo of Machine

Carton Box Flexo Printing Slotting Die Cutting Machine 180 Sheet/min For Pizza Box Making 1





THE MAIN PARAMETERS:

Carton Box Flexo Printing Slotting Die Cutting Machine 180 Sheet/min For Pizza Box Making 2

Model SP-Q3 SP-Q3 SP-Q3
Size 0920 1224 1628
Max. Sheet Size (FxA) 890x2000 1190x2400 1600x2800
Skip Feed Size (FxA) 1200x2000 1400x2400 1800x2800
Min. Sheet Size (FxA) 280x700 350x720 450x850
Max. Printing Area (FxA) 890x1960 1190x2360 1600x2760
Top Speed (Sheet/min) 300 250 180
Economic Speed (sheet/min) 150-250 120-220 100-160
Min. Slotting Space-Reverse Knife (BxCxBxC) 270x100x270x100 270x100x270x100 320x120x320x120
Min. Slotting Space-Normal Knife (BxCxBxC) 160x160x160x160 160x160x160x160 160x160x160x160
Max. Slot Depth Size 250 320 450
Min. Box Height Size 110 110 160
Max. Die-Cutting Area 850x1950 1150x2350 1530x2750
Sheet Thickness 1.5-11 1.5-11 1.5-11
Thickness of Printing Plate 7.2 7.2 7.2
Main Working Power(KW) 4 Colors Slotter Die-cutter 90/69/47 105/76/54 126.5/95.5/65.5
Stacker + Vibrator 3+10 3+10 3+10
Total Power(KW) 4 Colors Slotter Die-cutter 105/81.5/59.5 120/88.5/66.5 141/108/78
Stacker + Vibrator 3+10 3+10 3+10
Dimension (mm) 4 Colors Slotter Die-cutter 6600x4950x2550 9900x5350x2650 9900x5750x2750
Stacker 6500x3500x3000 6500x3970x3000 6500x4440x3000
Vibrator 3200x3300x1100 3200x3700x1100 3200x4150x1100
Mark: 0820 0924 1220 1226 1228 1424 1426 1630 1632 2036 can be customized.





OPTIONAL ITERMS AS BELLOW

Ceramic Rollers

Chambered Doctor Blade

Dual-shaft Slotting Unit

Vibrator

Counter Stacker

Inline Folder Gluer

Pre-feeder
