300m/Min 5 Layer Cardboard Production Line Automatic Plant 5.5KW

Place of Origin China
Brand Name StarPack
Certification Patent Certificate, CE Certificate
Model Number Automatic plant for double wall
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Steel Base with Carton Boxes and Film Wrapping
Delivery Time 120-160 days
Payment Terms L/C, T/T
Supply Ability 3 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Cardboard Production Line, Corrugated Cardboard Making Machine, Corrugating Cardboard Production Line Voltage 380V 50HZ Or Custom
Port Of Loading Guangzhou Or Shenzhen China Type FULL-Automatic
Condition Brand New
High Light

300m/Min Cardboard Production Line


5.5KW Cardboard Production Line


Corrugated Carton Production Line

Leave a Message
Product Description



A Automatic plant for double wall corrugated board Automatic plant for 5-layer cardboard High speed production line for corrugated cardboard



Products Description

300m/Min 5 Layer Cardboard Production Line Automatic Plant 5.5KW 0

  1. A Complete Corrugating Board Production Line Includes The Following Machines:Mill Roll Stand, Pre-Heater, Splicer, Single Facer, Over Bridge, Multi-Pre-Heater, Glue Machine, Double Baker, Slitter Scorer, Cutoff, Stacker, And Ect.
  2. Raw Paper Roll Feeded to The Roll Stand, After Heated And Moisture Adjusted By The Per-Heater, Raw Paper Will Go To The Single Facer, Corrugated By It, And Gluing Together With Another Raw Paper To Become Single Faced Corrugating Paper, Then Conveyed Through The Over Bridge, Re-Heated By Multi-Pre-Heater, After Glued By Glue Machine, Jointed By The Double Backer, Continuous Corrugating Board Comes Out.
  3. After Slitting And Scorring By Slitter Scorer And Transverse Cutting By Cutoff, Corrugating Board With Different Sizes Are Produced. At Last, These Different Sizes Corrugating Board Will Be Stacked, Calculated.
  4. Heating Way:Steam Heating.

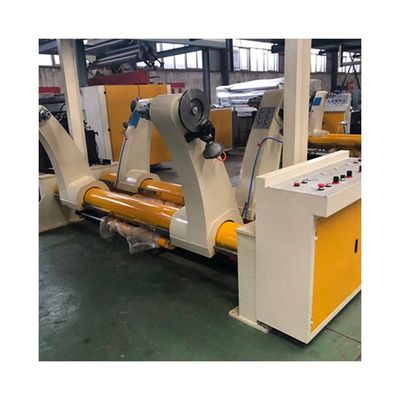

The Photo of Machine

300m/Min 5 Layer Cardboard Production Line Automatic Plant 5.5KW 1




  1. The hydraulic pole base is equipped with a directional bearing to eliminate the damage to the hydraulic cylinder caused by the settlement deformation of the foundation.
  2. The lock hole of lift arm is equipped with bearing steel sleeve, to improve the service life and facilitate replacement.
  3. Lifting the left and right-side hydraulic pole for smoother operation and longer service life.
  4. The traditional mill roll stand only one oil cylinder to drive main roller arm to lift up base paper. Under the action of long-term use and leverage, the other arm that not lifted by oil cylinder will distort and bend due to uneven stress. Especially when a wide base paper is used, it will cause not horizontal, thereby paper easily broken and uneven tension, hence, that will increase the waste products and cardboards of bad flatness. XHL’s mill roll stand is equipped with oil cylinder at each axle to lift up at the same time, even drain, make sure main axle and arm won’t distort during long use period.


Technical Parameters

01 Maximum clamping diameter 1500MM
02 Standard configuration: multi-point brake, expansion type clamping head 300m/min
03 Taiwan oil hydraulic system, hydraulic pressure station motor 5.5KW
04 FRA "Schneider" electric apparatus
05 ."AIRTAC" pneumatic components
