Inline Flexo Folder Gluer 300 sheets/min Flexo Printing Slotting Die Cutting Machine

Place of Origin Guangdong, China
Brand Name Toprint
Certification CE Certificate, Patent Certificate
Model Number TP-CR-1224
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Steel Base with Carton Box with Film Wrap
Delivery Time 60-90days
Supply Ability 3 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
After Warranty Service Video Technical Support, Online Support, Spare Parts Key Selling Points Full Automatic, Full Computerized Control, High Speed, Stable Running
Printing Precision ±0.5mm Wall Thickness 60-70mm
Applicable Industry Manufacturing Plant, Food & Beverage Factory, PACKAGE After-sales Service Field Maintenance And Repair Service, Field Installation,
Design Speed 300 Sheets/min Warranty 1 Year Warranty
High Light

Inline Flexo Folder Gluer


300 sheets/min Flexo Folder Gluer


Flexo Printing Slotting Die Cutting Machine

Leave a Message
Product Description

High Speed Flexo Printer Slotter Die Cutter Inline Folder Gluer For Carton Box Making Machine Chinese Made


High speed flexo printer slotter die cutter inline folder gluer for carton box making machine chinese made, full computerized flexo printer slotter, carton box folding machine.



General Specifications

  1. Inline Flexo Folder Gluer or FFG represents a complete box making solution, TP-CR Series open & close type flexo folder gluer represents of Quality, Consistency, Efficiency and Economic, after more than 15 years’ study and experience, Toprint is ready to deliver this machine to all the corrugated packaging manufacturers around the world.
  2. TP-CR series high-speed inline folder gluer (casemaker) adopts an intelligent management system using an independent industrial computer (windows based with keyboard), which is easy to manage orders and fast set up of machines, greatly saving time and labor cost.


Process of this Flexo Folder Gluer

  1. The aim of the flexo folding and gluing inline process is to produce regular slotted cases (RSC's) from sheets of corrugated board in a single pass. Laid out horizontally as an integrated system, as flexo folder gluer will incorporate a number of complimentary units that feed and print the board in several colors, then cut, glue, and fold it to produce a finished box.



Main Paramters

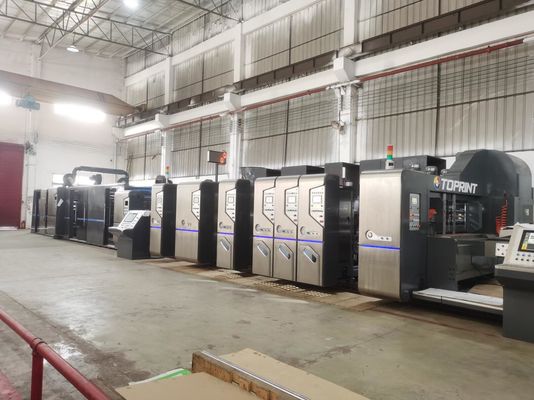

Inline Flexo Folder Gluer 300 sheets/min Flexo Printing Slotting Die Cutting Machine 0


Parameters (MM)

0920 1224
Max.Sheet Size (FxA) 890x2000 1190x2400
Skip Feed Size (FxA) 1200x2000 1400x2400
Min.Sheet Size (FxA) 280x780 380x780
Max.Printing Area (FxA) 890x2360 1190x2360
Top Speed (Sheet/min) 300 250
Economic Speed (sheet/min) 120-250 120-200
Max. Slot Depth Size 300 300
Min. Box Height Size (E) 110 110
Max. Die-Cutting Area (FxA) 850x2350 1150x2350
(Max. size) (B+C) ≤980 mm ≤1180 mm
(Min. size) (B+C) ≥370mm ≥380mm
(Max. size) (B) 880mm 1030mm
(Min. size) (B) 270mm 280mm
(Max. size) (C) 710mm 900mm
(Min. size) (C) 100mm 100mm
(Glue Flap Width) (D) ≤40mm ≤40mm
Sheet Thickness 1.5-11 1.5-11
Printing Plate Thickness (Sponge + Film + Plate) 7.2 7.2
Main Working Power (KW) Flexo Printer + Inline 70+40 70+40
Total Power(KW) Flexo Printer + Inline 100+51 100+51
Dimension (mm) Flexo Printer 10500x5000x2530 10500x5200x2630
Inline Folder Gluer 14300x2500x2650 14300x2600x2650
Frame Thickness Flexo Printer 60mm 60mm
Folder Gluer 40mm 40mm


Simply description of Fexo Folder Gluer

Inline Flexo Folder Gluer 300 sheets/min Flexo Printing Slotting Die Cutting Machine 1

  1. The Feeding units of this machine adopts lead edge feeder with 3-4 axis for driving, and extended dust removing system with 3-4 suction blower and anti-static brushes to remove the dust effectively.
  2. Several flexographic printing units, one for each color required, cardboard transmit by a vacuum transfer device, which is more and widely application of thin, bend, and wrap cardboard.
  3. Creasing and slotting unit to crease and cut the cardboard, makes it into a fixed shape, the slotting unit structure adopts 8 axis structure with Pre-creasing, widen creasing, thin creasing, single shaft dual slotter knifes or dual shaft slotter knifes as optional.
  4. An optional rotary die-cutting unit which will create any complex die-cut shapes required, while when make die-cutting boxes, an special horizontal conveyor might be required as an optional to delivery the die-cutting boxes out independently via stacker.
  5. Folder-gluer section: to apply adhesive to the glue tab and fold part of the board along a crease line to meet it, the excellent folding device was control by 4 independent motors.
  6. Counter-ejector: stacks the cases in the required quantities according to the thickness of the material. The counter ejector delivers a bundle of completed cases ready to be strapped and palletized manually or with an automatic palletizer.
  7. Automatic PP/PE Strapping unit: an optional of automatic PP/PE strapping units, which allows to wrapping a bundle of cartons and can directly send it to truck after strapping.
