TP-CR Automatic Folder Gluer Machine Full Computerized Control

Place of Origin Guangdong, China
Brand Name Toprint
Certification CE Certificate, Patent Certificate
Model Number TP-CR-1224
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Steel Base with Carton Box with Film Wrap
Supply Ability 3 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Of Machine Flexo Folder Gluer Inline Machine Functions From Cardboard To Carton
Installation Available To Dispatch Engineers, Free Installation Service 1 Years Warrenty, Remote Control, Online Service
Training Engineer Training, Video Training Frame Thickness 60-70mm
Voltage 380V , 50HZ Or Custom Loading Guangzhou Or Shenzhen Port
High Light

High Speed Folder Gluer


TP-CR Auto Folder Gluer Machine


Automatic Folder Gluer

Leave a Message
Product Description

High Speed Flexo Folder Gluer With Full Computer Control, Carton Box Making Machine, Automatic Folder Gluer, for all kind of carton box making, one time pass machine, save labor cost and adjusting time.




  1. TP-CR Series Flexo Printer Slotter Die-cutter Inline Folder Gluer provides a complete solution of carton box making, this machine can finish cardboard feeding, printing, cutting, gluing, folding, counting, ejecting and strapping in one pass, the whole machine only needs 3-4 staffs for operating, greatly improve the daily production capacity and save labor cost.
  2. The whole line adopts latest industrial design, and is controlled by an independent industrial computer, windows base with keyboard, with friendly HMI touch screen for operation, easy to set up and fast order change, ready to connect with ERP for more easy management of factory production.

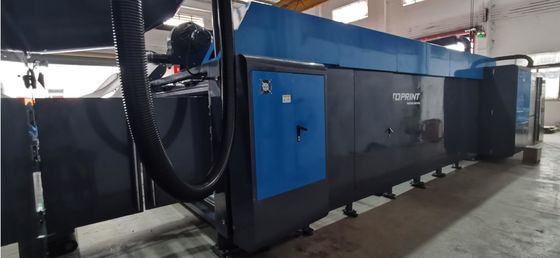

TP-CR Automatic Folder Gluer Machine Full Computerized Control 0




  1. The main purpose of this flexo folder gluer (casemaker) is used to produce the regular slotted carton (RSC’s) from corrugated cardboard in a single pass with high speed and advantages.
  2. Saving labor cost, saving machine adjusting time and improve the production capacity.



TP-CR Automatic Folder Gluer Machine Full Computerized Control 1


Parameters (MM)

0920 1224
Max.Sheet Size (FxA) 890x2000 1190x2400
Skip Feed Size (FxA) 1200x2000 1400x2400
Min.Sheet Size (FxA) 280x780 380x780
Max.Printing Area (FxA) 890x2360 1190x2360
Top Speed (Sheet/min) 300 250
Economic Speed (sheet/min) 120-250 120-200
Max. Slot Depth Size 300 300
Min. Box Height Size (E) 110 110
Max. Die-Cutting Area (FxA) 850x2350 1150x2350
(Max. size) (B+C) ≤980 mm ≤1180 mm
(Min. size) (B+C) ≥370mm ≥380mm
(Max. size) (B) 880mm 1030mm
(Min. size) (B) 270mm 280mm
(Max. size) (C) 710mm 900mm
(Min. size) (C) 100mm 100mm
(Glue Flap Width) (D) ≤40mm ≤40mm
Sheet Thickness 1.5-11 1.5-11
Printing Plate Thickness (Sponge + Film + Plate) 7.2 7.2
Main Working Power (KW) Flexo Printer + Inline 70+40 70+40
Total Power(KW) Flexo Printer + Inline 100+51 100+51
Dimension (mm) Flexo Printer 10500x5000x2530 10500x5200x2630
Inline Folder Gluer 14300x2500x2650 14300x2600x2650
Frame Thickness Flexo Printer 60mm 60mm
Folder Gluer 40mm 40mm



Simply description of FLEXO FOLDER GLUER

TP-CR Automatic Folder Gluer Machine Full Computerized Control 2

  1. Feeding Unit: which stacks and squares the incoming board before introducing it into the machine at the required speed
  2. Flexographic Printing Units: multi-colors, one for each color required, cardboard transmit by a vacuum transfer device, more benefits for bend, wrap and thin cardboards.
  3. Slotting Units: combined the function of crease and slotting together, which used to make cardboard into a fixed shape, two slotting unit structure can be choose, 8 axis structure with Pre-creasing, widen creasing, thin creasing, single shaft dual slotter knifes or dual shaft slotter knifes as optional.
  4. Die-cutting Unit: Heavy duty die-cutter is an optional units, which used to make any complex shape of carton, when make die-cutting boxes, a special horizontal conveyor might be required as an optional to delivery the die-cutting boxes out independently via stacker.
  5. Folder-gluer section: with USA Valco gluing system to apply adhesive to the glue tab, and fold part of the board along a crease line to meet it, the excellent folding device was control by 4 independent motors.
  6. Counter-ejector: Top loading structure with full servo control, to stack the cartons in the required quantities according to the thickness of the material. The counter ejector delivers a bundle of completed cases ready to be strapped and palletized manually or with an automatic palletizer.
  7. Automatic PP/PE Strapping unit: an optional of automatic PP/PE strapping units, which allows to wrapping a bundle of cartons and can directly send it to truck after strapping.


Fore more details, please feel free to contact with us!
