6KW 1450S Flute Laminator Machine Automatic Flip Flop Machine

Place of Origin guangdong,CN
Brand Name starpack
Certification Patent Certificate, CE Certificate
Model Number 1450S
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Steel Base with Carton & Bopp Film
Delivery Time 30-50 days
Payment Terms L/C, T/T
Supply Ability 10 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Feeding Way Automatic Feeding Name Automatic Flute Laminator Machine
Service Nstallation Service, Online Support, Video Support, Commissioning And Training Product Name Automatic Folder Gluer Machine
Voltage 380V/50HZ Or Customs Certification CE Certificate, Patent Certificate
Automatic Full-Automatic
High Light

1450S Flute Laminator Machine

,

6KW Flute Laminator Machine

,

Automatic Flute Laminator Machine

Leave a Message
Product Description

380V 6KW 1450S Flute Laminator Machine Automatic Flip Flop Machine



Automatic Laminating Machine Automatic Flip Flop Machine for Flute Laminator new Technology in Laminating industry Save Your Cost





SUMMARY OF MACHINE

  1. YB-1300ES/1450ES/1650ES Automatic Flip Flop Laminating Machine is the latest achievements of laminating machine automation process, flip flop collect paper instead of artificial collect paper, automatic positive and negative stacked in one pile, liberating of your hands. Doing all by machines, you only checking.
  2. Automatic flip flop machine is the special accessory products for sheet to sheet laminating machines and can be connected with any of manufacturer’s laminating machine. This integrative equipment can auto make the laminated papers to piles according to specified number. With collecting, piling, intermittent turning and stacking functions, realize collected paper front and backside placed stacking, effectively prevent laminated paper curving and manpower-saving for labor collecting strength.



THE MAIN PARAMETERS:



Max Sheet size YB-1450S YB-1650S
Min Sheet size 1450×1250mm 1650×1450mm
Overall 500×500mm 500×500mm
Power 5500×2600×2900mm 5500×2800×2900mm
Max Sheet size 6KW 6KW





MACHINE PHOTOS:

6KW 1450S Flute Laminator Machine Automatic Flip Flop Machine 0





THE MAIN FEATURES:

  1. PAPER SEPARATING SYSTEM: Driving wheel and laminating press belt joint to transmit power. Laminated paper be stacked down to down pallet by driving wheel and synchronous belt, when reach the specified number, separating rod lift and separate the paper.
  2. DOWN PUSH SYSTEM: Driven by the cylinder two pawl forward movement, push the set-up quantity paper into a turnover device.
  3. TURNING SYSTEM: Using the automatic clamping system to make paper front and back alternately placed, make sure the laminated paper smooth and stiff, convenient for subsequent production line.
  4. UP PUSH SYSTEM: Using cylinder and lever principle, pushing the lifting paper into collecting system and waiting to be piled.
  5. PILING SYSTEM: Reciprocating motion of four splint patting the collected paper orderly, ensure the collecting neat.
  6. COLLECTING SYSTEM: When the paper stacking to 1.7M in height, collecting platen automatic drop, hydraulic car will pull out the whole stack of paper, at the same time the vice paper collecting table automatic work, complete non-stop collecting finished.
  7. ELECTRONIC UNIT: All parts adopt well-known foreign brand, reasonable program design, working by one key to complete the operation, automatic fault detection.
  8. PNEUMATIC CONTROL SYSTEM: The mechanical action work through pneumatic control to complete, all pneumatic components are imported famous brand.





MACHINE PHOTOS:

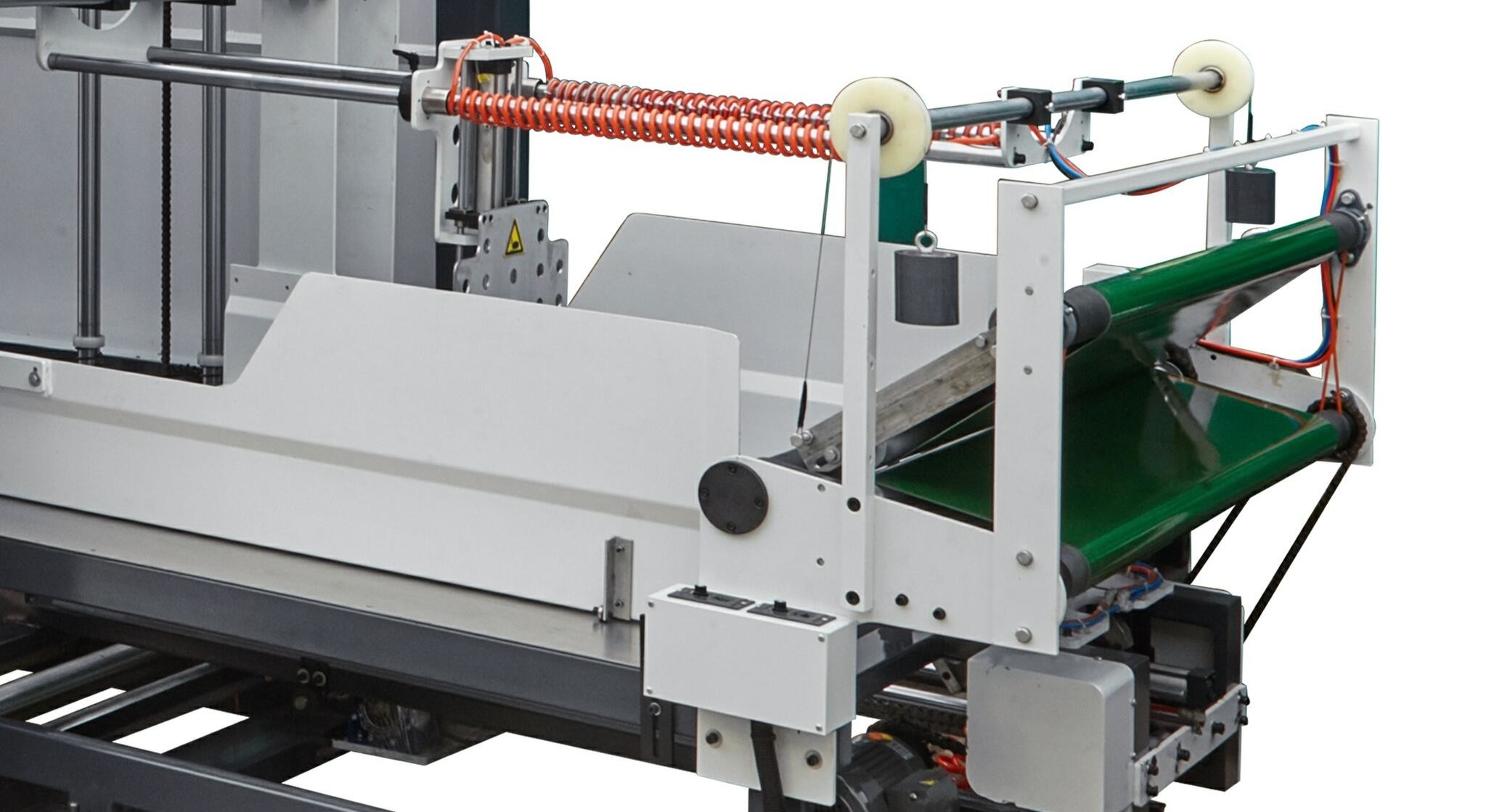

6KW 1450S Flute Laminator Machine Automatic Flip Flop Machine 1
