Automatic Flexo Printing Slotting Machine High Speed Open / Closed Type

  • Automatic Flexo Printing Slotting Machine High Speed Open / Closed Type
  • Automatic Flexo Printing Slotting Machine High Speed Open / Closed Type
  • Automatic Flexo Printing Slotting Machine High Speed Open / Closed Type
Place of Origin Foshan, Guangdong, China
Brand Name Toprint
Certification Patent Certificate, CE Certificate
Model Number TP-CR
Minimum Order Quantity 1 Set
Price Negotication
Packaging Details Steel Base with Carton and Film Wrapping
Delivery Time 60-90 days
Payment Terms L/C, T/T
Supply Ability 3 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Stable And Durable Name Automatic High Speed Flexo Printing Slotting Machine
Voltage 380V 50HZ Or Custom Warrenty Whole Machine 1 Year Warrenty, Feeding Transmission Box 3 Years
Service Video Technical Support, Online Support, Quickly Wear-out Parts Supply Key Words Carton Box Making Machine
Colors Gray Or Custom
High Light

Automatic Flexo Printing Slotting Machine

,

High Speed Flexo Printing Slotting Machine

,

High Speed Flexographic Printing Machine
Leave a Message
Product Description





Automatic High Speed Flexo Printing Slotting Machine for High-efficiency production Carton Box Making Machine Vibrator and Auto Stacker.





GENERAL SPECIFICATIONS

  1. This line mainly used to make Corrugated Carton Boxes from Corrugated Cardboard Sheets, it can finish multi process in one time pass to save time and labor cost, corrugated Carton Boxes are widely use in all kind of packages, such as Fruit Package, Beverage Package, Furnitures, Electric Parts and etc….
  2. TP-CR Series Flexo Printing Slotting Machine can easy combine with Inline Folder Gluer (Case Maker) and add Pre-feeder to make the whole line more efficiency, so the total line only need 3-4 people for operation.

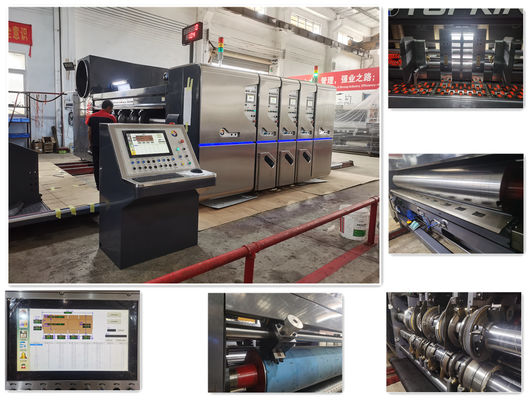

MACHINE PHOTOS

Automatic Flexo Printing Slotting Machine High Speed Open / Closed Type 0





MAIN FEATURES

  1. TP-CR Series open & closed type Flexo Printing slotting machine is a gear drive vacuum transfer machine, which is benefits for all kind of Wrap, Bend cardboards, save your materials.
  2. Lead Edge Feeding System, Long life time, lower error, and power saving. If choose Non-crash feeding, do not damage the cardboard strength.
  3. Vacuum suction, ceramic coated, segmented vacuum suction, transfer wheels coated with wear-resistant ceramic for accurate transmission and long-life time, save sheet cost and power.
  4. Closed Chambered Doctor Blade, ink saving, Nanometer ceramic coated for easy cleaning with special aluminum alloy, improved bending resistance by 30%, saving ink supply by 20% with ink auto washing system.
  5. The Transmission Gears are made of High-Quality alloy steel (20CrminTi), which is ground and hardened to GRC58-62 standard.
  6. Details-oriented for Safety and Reliability, safety emergency button set on each unit operation interface, protection switch set inside of each section for easy maintain and ensure safety during people work inside.
  7. Free key Connection for stable Precision, application of free key connection to reduce backlash and maintain the printing accuracy.
  8. Intelligent Order setting for Smart production, industrial computer and touch screen for intelligent order setting, order quick change, auto zero register after cleaning plate, unlimited orders memory more than 1,000,000 orders.





MAIN PARAMETERS

Automatic Flexo Printing Slotting Machine High Speed Open / Closed Type 1

Model

Parameters (MM)

 0920 1224
Max.Sheet Size (FxA) 890x2000 1190x2400
Skip Feed Size (FxA) 1200x2000 1400x2400
Min.Sheet Size (FxA) 280x780 380x780
Max.Printing Area (FxA) 890x2360 1190x2360
Top Speed (Sheet/min) 300 250
Economic Speed (sheet/min) 120-250 120-200
Max. Slot Depth Size 300 300
Min. Box Height Size (E) 110 110
Max. Die-Cutting Area (FxA) 850x2350 1150x2350
(Max. size) (B+C) ≤980 mm ≤1180 mm
(Min. size) (B+C) ≥370mm ≥380mm
(Max. size) (B) 880mm 1030mm
(Min. size) (B) 270mm 280mm
(Max. size) (C) 710mm 900mm
(Min. size) (C) 100mm 100mm
(Glue Flap Width) (D) ≤40mm ≤40mm
Sheet Thickness 1.5-11 1.5-11
Printing Plate Thickness (Sponge + Film + Plate) 7.2 7.2
Main Working Power (KW) Flexo Printer + Inline 70+40 70+40
Total Power(KW) Flexo Printer + Inline 100+51 100+51
Dimension (mm) Flexo Printer 10500x5000x2530 10500x5200x2630
Inline Folder Gluer 14300x2500x2650 14300x2600x2650
Frame Thickness Flexo Printer 60mm 60mm
Folder Gluer 40mm 40mm







PRINTING PHOTO

Automatic Flexo Printing Slotting Machine High Speed Open / Closed Type 2





CONTAINER LOADING PHOTO

Automatic Flexo Printing Slotting Machine High Speed Open / Closed Type 3
