Carton Box Die Cutting Machine RDC Rotary Die Cutter For Corrugated
| Place of Origin | Foshan,CN |
|---|---|
| Brand Name | Starpack |
| Certification | Patent Certificate, CE Certificate |
| Model Number | SP-RDC0920/1224/1628 |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Steel Base with Carton & Bopp Film Wrapping |
| Delivery Time | 45-55 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5 Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rotary Die Cutting Machine | Service | Online Support, All Necessary Documents, Quickly Wear-out Parts Supply And Etc... |
|---|---|---|---|
| Voltage | 220/380V Or Custom | Warranty | 1 Years Warranty |
| Application | For All Kind Of Carton Boxes Making | Automatic Type | Can Be Automatically, And Manual One Is Available. |
| Color | Custom | Port Of Loading | Guangzhou Or Shenzhen |
| High Light | Carton Box Die Cutting Machine,Corrugated Rotary Die Cutter,Rotary Die Cutter For Corrugated |
||
Product Description
High Speed Corrugated Carton Box Die Cutting Machine Rotary Die Cutting Machine RDC Machine for Carton Box Making
SUMMARY OF MACHINE
SP-RDC0920/1224/1628 Series Rotary Die Cutting Machine is especially used for die-cutting boxes, with Lead Edge Feeder, easy to operate and maintain.

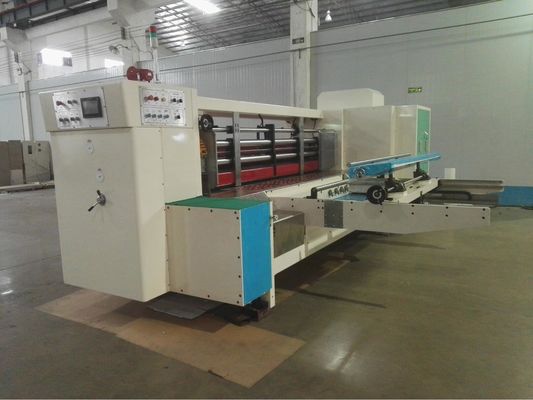

MACHINE PHOTOS
THE MAIN FEATURES:
- Machine frame: 65mm.
- Lead edge feeding suitable for all kind of printed cardboard, more benefits for wrap and bend ones.
- The Die-cutting anvil is made of seamless steel pipe (outer diameter 303mm, including anvil cover 320mm), precision ground, chrome plated and balance corrected, adopts shaft locking system, the thermal refining of shaft core to make it become more anti-fatigue and toughness.
- The Die-cutting anvil is covered with Italy Policart Anvil cover, and it’s dismountable for easy changing.
- Mechanical differential structure is adopted for transverse moving for a range of 30mm, which enables anvil cover wear uniform, and prolongs its life time.
- The gap of die-cutting anvil is motorized adjusted, digital display, and the adjustment range: 0-11mm.
- The Die-cutting cylinder is made of seamless steel pipe (outer diameter 257mm, including anvil cover 305mm), precision ground, chrome plated and balance corrected, adopts shaft locking system, the thermal refining of shaft core to make it become more anti-fatigue and toughness.
- Cross line engraved on the surface of die-cutting cylinder. M10 screw holes are attached, and holes distance is international standard.
- Wooden die height is H24mm for easy installation.
- Upper guiding roller is made of solid steel pipe, precision ground, chrome plated and balance corrected, with 2pcs grooved guiding rings, can be quickly adjusted by hand.
- The lower roller is made of solid steel pipe, precision ground, chrome plated, balance corrected.
- The gap of lower roller is motorized adjusted with self-locking system, dial display, the adjustment range: 0-11mm.
- Planetary gear structure is adopted for die-cutting register, 360ºprecisely adjusted.
- Die-cutting unit is digitally control by independent PLC, die-cutting register and transverse moving is motorized adjusted, digital display.
- Register fixing adopts pneumatic brake structure, when the units are opening or registering, the brake structure stops machine running to fix the position of wooden die.
- As requested, it’s available to add an independent driver for linear speed compensation.
- Automatic anvil grinding is optional.
- Available to match with Vibrator and Stacker.
THE MAIN PARAMETERS:
| Model | SP-RDC0920 | SP-RDC1224 |
| Max. sheet size | 900X2000mm | 1200X2400mm |
| Min. sheet size | 280x700mm | 280x700mm |
| Working speed | 250 sheets/min | 250 sheets/min |
| Sheet thickness | 1.5-11 | 1.5-11 |
| Dimension | 4500x2800x2100m/m | 4500x3200x2100m/m |
