1400x2600 Semi Automatic Box Stitching Machine Corrugated Carton Box Stitching Machine

  • 1400x2600 Semi Automatic Box Stitching Machine Corrugated Carton Box Stitching Machine
  • 1400x2600 Semi Automatic Box Stitching Machine Corrugated Carton Box Stitching Machine
Place of Origin Guangzhou, China
Brand Name starpack
Certification CE Certificate, Patent Certificate
Model Number SP-GL1426
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Steel Base with Carton and Film Wrapping
Delivery Time 7-15 days
Payment Terms L/C, T/T
Supply Ability 12 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Semi-auto Stitching Machine Usage Carton Box Stitching Machine
Voltage 380V, 50HZ Or Custom Size 1400x2800 Or Custom
Power 7KW Speed 40-5boxes Per Mintes
Feeding Type Manual Wire Sender Available
Highlight

1400x2600 Semi Automatic Box Stitching Machine

,

1400x2800 Semi Automatic Box Stitching Machine

,

Carton Box Stitching Machine
Leave a Message
Product Description





Semi-Automatic Box Stitching Machine Corrugated Carton Box Stitching Machine High Speed with size 1400x2600mm China Made





BRIEF INTRUCTION

  1. Semi-Automatic Box Stitching Machine, one of post-printing equipment, is mainly used for the stitching of single sheet corrugated cardboard forming, to meet the requirements of multiple varieties and different order.
  2. Finished products are automatically counted and sent in bundles for easy packing.
  3. The standard model of Semi-automatic Box Stitching Machine have SP-GL1426 only. Also can customized other size according to customer’s requirement.

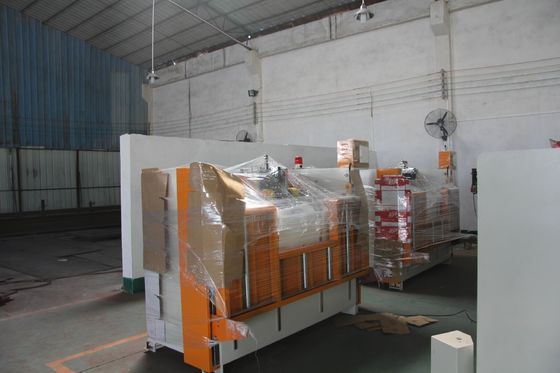

MACHINE PHOTOS

1400x2600 Semi Automatic Box Stitching Machine Corrugated Carton Box Stitching Machine 0





SPECIFICATION

1400x2600 Semi Automatic Box Stitching Machine Corrugated Carton Box Stitching Machine 1

Model SP-GL1426
Top working speed(pcs/min) 500
Nails distance(mm) 15-120
Nails amount(pcs) 2-999
Nails selection Single/ double/ Mixed nails
Paperboard thickness(mm) 3-11
Nails specification(mm) 17#(2.0x1.0);18#(1.8x0.8)
Max. sheet length(L+W)X2(mm) 2800
Min. sheet length(L+W)X2(mm) 600
Max. sheet width(W)(mm) Not limit
Min. sheet width(W)(mm) 300
Side mark(C)(mm) 120-500
Stitching flap(D)(mm) 30-45
First stitching length( back stop) (mm) 15
Total power(HP) 5
Machine size(floor area) (mm) 2600x2000x1800
Machine weight(kg) 1600
Lifting height of Feeding table (mm) 900





MACHINE PHOTOS

1400x2600 Semi Automatic Box Stitching Machine Corrugated Carton Box Stitching Machine 2





FEATURES

  1. Adopted servo drive and touch screen for easy operation. Fast order-changing within one minute.
  2. Suitable for single, double and reinforced nails with a speed of up to 500 nails per minute.
  3. The speed of the rubber wheel can be adjusted directly on the touch screen (it can be adjusted freely according to individual speed).
  4. The board thickness can be adjusted automatically (adjusted on the touch screen for quick conversion of single flute and double flute)
  5. Alarm system: pin alarm, operation error alarm (automatic stop).
  6. Five groups Servo control for Stitching Unit, synchronous matching with flapping, stitching, and conveying.
  7. Can DO the box with lid, and no bottom.
  8. Can match with auto strapping machine.





ADVANTAGES

  1. High capability-Stitching: Maximum output up to 3000 per hours
  2. Labor saving: 1-2 workers
  3. Easy Job: Order saving and quick changing by 3-5 min.
  4. Wide range application: Be used to agriculture, food, logistics and industrial packaging.
  5. Acceptability in Precision: Pass rate is more than 99%
