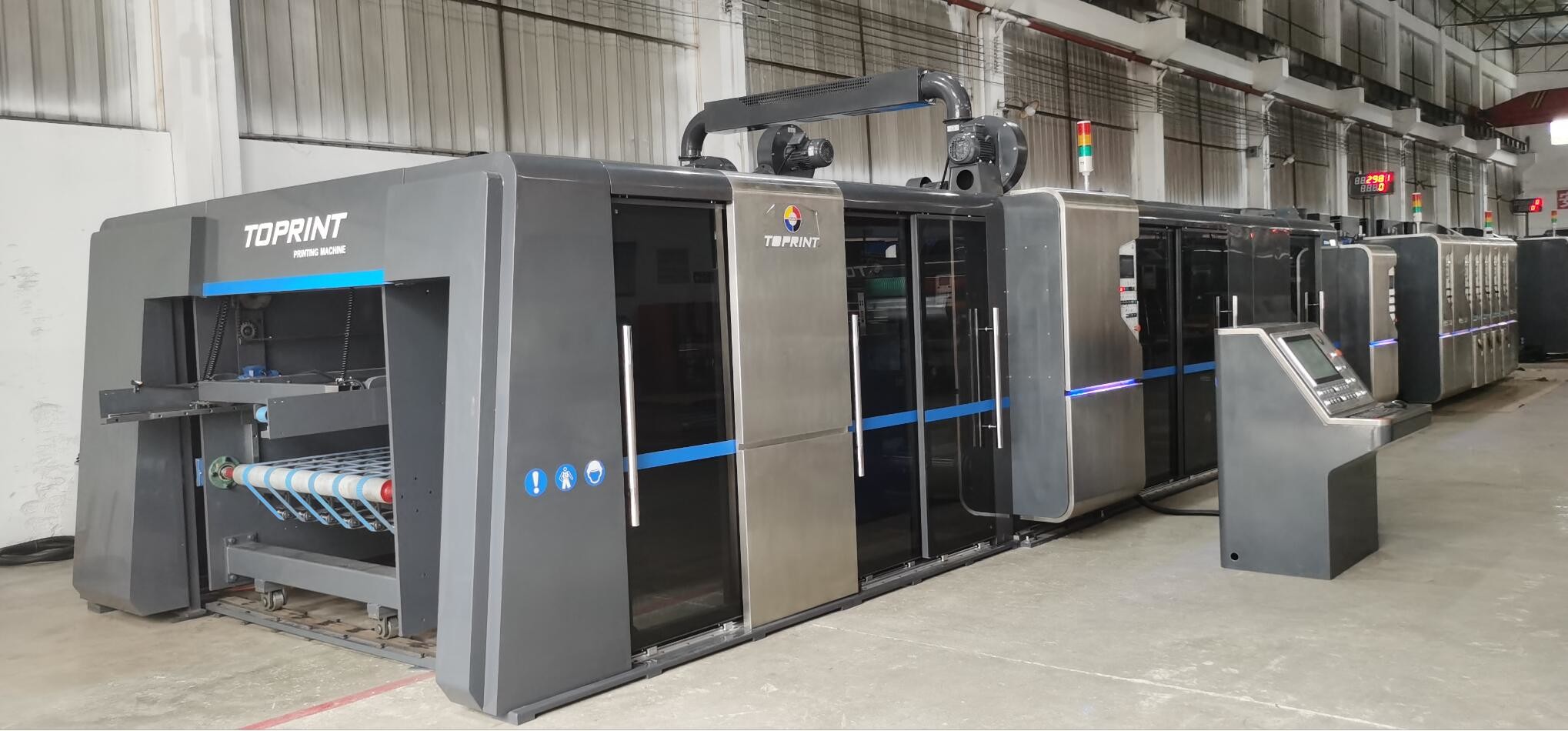

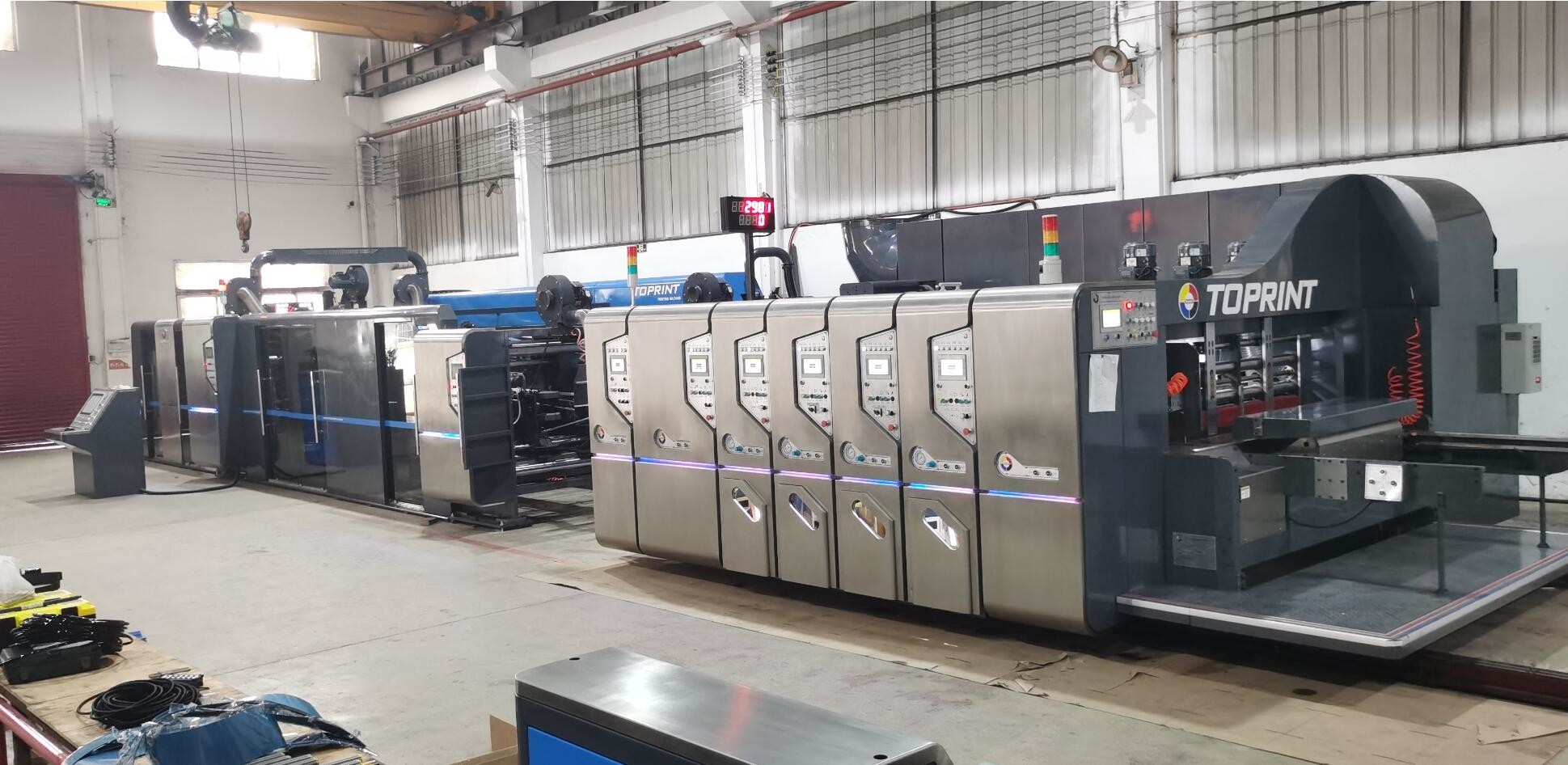

Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine

  • Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine
  • Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine
  • Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine
Place of Origin Guangdong, China
Brand Name Toprint
Certification CE Certificate, Patent Certificate
Model Number TP-CR-1224
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Steel Base with Carton Box with Film Wrap
Delivery Time 60-90days
Payment Terms L/C, T/T
Supply Ability 3 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Box Folder Gluer Machine Highlights Inline Control, Save Labor Cost And Space
Thickness Frame Thickness 60-70mm Gear Lubrication Wtih Oil Balance System
Power 150kw Voltage 380V, 50HZ Or Custom
Ceramic Roller Yes Doctor Blade Optional
High Light

Flexo Printer Slotter Machine

,

Automatic Folder Gluer Machine

,

Folder Gluer Strapper Inline Machine
Leave a Message
Product Description

Carton Box Maker Box Folder Gluer Automatic Flexo Printer Slotter Die-Cutter Folder Gluer Strapper Inline Machine





GENERAL SPECIFICATIONS

  1. The latest industrial surface design with stainless steel gear cover, good performance, easy to clean and maintain.
  2. By using industrial computer with friendly HMI to reduce the multi-function buttons and simplify the steps of order setting to make the machine friendly use and easy set up to increase your productivities.
  3. Surveillance system in each printing unit to monitor the cardboard transmission situation, reduce waste.

MAIN PARAMETERS

Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine 0

Paramters                                                          Model 0920 1224
Max.Sheet Size (FxA) 890x2000 1190x2400
Skip Feed Size (FxA) 1200x2000 1400x2400
Min.Sheet Size (FxA) 280x780 380x780
Max.Printing Area (FxA) 890x2360 1190x2360
Top Speed (Sheet/min) 300 250
Economic Speed (sheet/min) 120-250 120-200
Max. Slot Depth Size 300 300
Min. Box Height Size (E) 110 110
Max. Die-Cutting Area (FxA) 850x2350 1150x2350
(Max. size) (B+C) ≤980 mm ≤1180 mm
(Min. size) (B+C) ≥370mm ≥380mm
(Max. size) (B) 880mm 1030mm
(Min. size) (B) 270mm 280mm
(Max. size) (C) 710mm 900mm
(Min. size) (C) 100mm 100mm
(Glue Flap Width) (D) ≤40mm ≤40mm
Sheet Thickness 1.5-11 1.5-11
Printing Plate Thickness (Sponge + Film + Plate) 7.2 7.2
Main Working Power (KW) Flexo Printer + Inline 70+40 70+40
Total Power(KW) Flexo Printer + Inline 100+51 100+51
Dimension (mm) Flexo Printer 10500x5000x2530 10500x5200x2630
Inline Folder Gluer 14300x2500x2650 14300x2600x2650
Frame Thickness Flexo Printer 60mm 60mm
Folder Gluer 40mm 40mm





FEEDING SECTION

Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine 1

  1. Lead edge feeder with accurate feeding for all flutes.
  2. Benefits for wend and wrap cardboard.
  3. With suction motor and anti-static bushes for dust remove.
  4. Available for skip feed.
  5. Auto zero-set for feeding position.
  6. Non-crush feeder Optional.
  7. All gap adjustment via eccentric device with digital display.
  8. Frequency inverter drive with variable suction control.



PRINTING SECTION

Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine 2

  1. Top print, vacuum transfer of cardboard.Benefits for all kind of cardboard.
  2. Register servo control with high accurate printing registration.
  3. Laser engraved ceramic anilox roll.
  4. Standard model equipped with Rubber Roller, and chamber blade system is Optional.
  5. Surveillance System equipped to check cardboard transmission situation.
  6. with auto wash ink chamber system.
  7. Auto zero- set for printing position.



SLOTTER CREASER SECTION

Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine 3

  1. Printing unit design with 8 shaft structure.
  2. Pre-creasing, creasing, re-creasing, single shaft dual slotting.
  3. All the gaps computerized control or by order management system.
  4. Slotting boss movement adopts linear guiding rail match with ball screw for smooth moving.
  5. Slotting boss with opposite insert structure to ensure min. size cardboard and smooth movement.
  6. Auto zero- set for slotting knife.
  7. Register servo control.



DIE CUTTER SECTION

Automatic Flexo Printer Slotter Machine , Folder Gluer Strapper Inline Machine 4

  1. Heavy duty die cutting drum.
  2. Automatic grinding system is used to prolong the life time of anvil cover.
  3. Frequency control of line speed compensation.
  4. Register servo control.



FOLDER GLUER

  1. Top printing with down folding folder gluer for stable performance.
  2. Suction bests for straitly movement.
  3. USA Valco gluing system, easy to adjust.
  4. Full closed unit for safety operation.
  5. Quick positioning via AC servo control.
  6. Full integrated construction with HMI control device.
  7. 9 servo control for accurate folding and counting and ejecting.
  8. Side guiding wheel, Main transmission belts, Paper insert arm, paper press arm, paper holding device, and Whole paper holding device transmission and counter ejector belts all servo control for accurate counting and ejecting.
  9. Upper suction belt with down folding for stable performance.
  10. Top loading device for receiving and stacking





For more information, please feel free to contact with us.

THANK YOU!!!
